How do I create a vehicle

This topic will show you how to create a new vehicle in TX-CONNECT, how to assign an OBC profile to a vehicle and how to visualize the new vehicle in "Vehicle follow-up" / "Driver follow-up" and other modules.

Step

Process

1

Go to Settings > Management > Vehicles to manage your vehicles. Here you can add new and modify existing vehicles.
Press
 at the bottom of the page to create a new vehicle.

2

Enter the mandatory vehicle details in all 3 tab pages:

·      Identification

·      On-board computer information

·      TX-SMART information

3

Press .

4

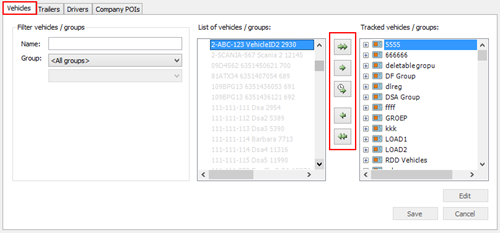

Next, go to Settings > Tracking > Who tracks what to assign the vehicle to a user (cf. Who tracks what).

Select the correct user at the top and select the Vehicles tab page at the bottom.

Use the arrow buttons to move items between the left list (= all items) and the right list (= tracked items only).

Press .

5

IMPORTANT

In order to correctly visualize the vehicle and driver in TX-CONNECT, the IMEI number of the installed TX-SKY on-board computer must be linked to a vehicle in TX-CONNECT BEFORE a driver logs on to the on-board computer.



To link the IMEI number to a vehicle, go to Settings > Tools > OBC overview

Press .

6

You can now see the vehicle in "Vehicle follow-up" and other modules.



Related topics: Create a driver key
