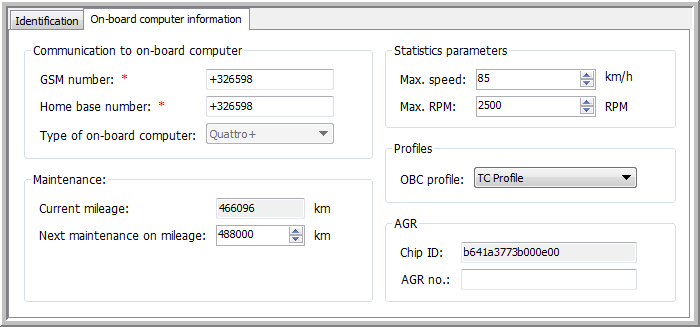

Parameters

Communication to on-board computer

GSM number:

GSM number of the SIM card in the OBC.

Home base number:

GSM number of the SIM card at home base. Note that the last entered value will be remembered.

Type of on-board computer:

Type of OBC installed in the vehicle: Laura, Quattro, TX-MAX, TX-SKY / MDT, Other.

Maintenance

Current mileage: x km

The mileage from the vehicle, as received in real time from the CAN Bus.

Next maintenance on mileage: x km

Manually entered distance before the next vehicle maintenance.

Statistics reporting parameters

Max. speed: x km/h

Configure a maximum speed alarm for the dispatcher (TX-MAX / Quattro+ only) - cf. Speed alarm and RPM alarm.

Max. RPM: x RPM

Configure a maximum RPM alarm for the dispatcher (TX-MAX / Quattro+ only) - cf. Speed alarm and RPM alarm.

Profiles

OBC profile:

Select an OBC profile, created in Settings > Profiles > OBC profiles.

Route calculation profile:

Select a route calculation profile for the next stop and toll cost calculation (cf. Next stop / Toll costs). A route calculation profile can be created or modified in the Map module - cf. Truck profiles.

Note: This is not a mandatory field. No default profile will be selected when creating a new vehicle.

AGR

Chip ID:

This is a unique identification number that is linked to the AGR number. This "ID" number is automatically filled in after the configuration of the on-board computer.

On TX-SKY on-board computers, the AGR integration is supported as from TX-CONNECT version 11.45.14. You can clear the "Device ID" (for example in case of replacement), but a day code is required for confirmation.

AGR no.:

You will receive this number from the Manure Bank. This is the official number that will be sent to the Manure Bank when using this vehicle. This number contains 8 characters.
