Speed alarm and RPM alarm |
1. Fleet environment (TX-MAX / Quattro+ only)

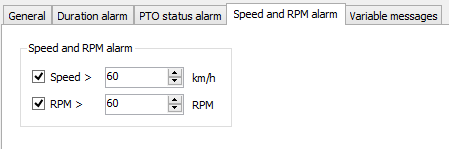

For TX-MAX / Quattro+ on-board computers, speed and RPM alarms can be set in Vehicle Management: Settings > Management > Vehicles > On-board computer information:
2. TX-SKY-only environment (TX-SKY only)
For TX-SKY on-board computers, speed and RPM alarms can be set in OBC profiles: Settings > Profiles > OBC profiles:
3. Mixed fleet environment (TX-MAX / Quattro+ / TX-SKY)
In case of a mixed fleet environment with both TX-SKY and TX-MAX / Quattro+ on-board computers:

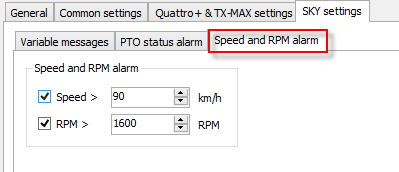

3.1. Speed and RPM alarms for TX-SKY: Settings > Profiles > OBC profiles > SKY settings:
3.2. Speed and RPM alarms for TX-MAX / Quattro+: Settings > Management > Vehicles > On-board computer information:
Note: As from TX-MAX version 26.52, the speed and RPM alarm is also sent to the on-board computer using a command. As a result, the driver will also receive an alarm when exceeding the configured limits.
Result: A configuration message is sent to the TX-MAX on-board computer:
