OBC OVERVIEW |

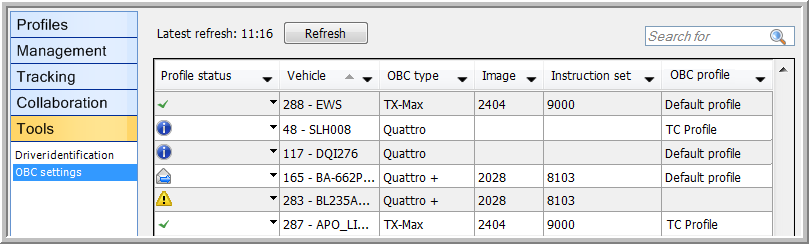

Under Settings > Tools, the "OBC Overview" module provides an overview of the OBC settings of all vehicles tracked by the user. Above the grid, you can find a Refresh button and a Search field. Note that it is only possible to refresh every 5 minutes.
According to your fleet configuration, different tab pages may be available.

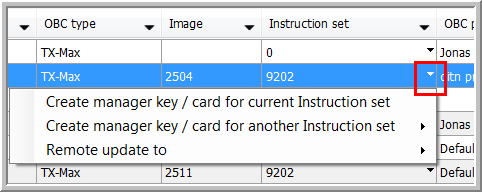

In the Quattro / TX-MAX overview, it is possible to create a manager key / card for a specific instruction set and remotely update the instruction set. To do so, select an OBC in the overview, go to the "Instruction set" column and click on the arrow to open the drop-down list.
|
Profile status |
: Error : Profile not present : OBC not installed : Sending : OK |
|
Vehicle |
Vehicle format. This info can be set in Settings > Management > Formatting. |
|
Technical number |
The technical number of the vehicle, chosen by Transics. |
|
Code |
Vehicle code chosen by the customer. This code can be modified under Settings > Management > Vehicles. |
|
OBC type |
|
|
Image |
Image version |
|
Instruction set |
Instruction set version |
|
OBC profile |
Communication profile |
|
Date latest GPRS |
Date of the latest GPRS connection. |
|
VISUALISATION |

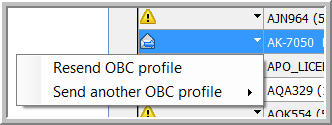

● When clicking on the arrow next to the status, you will get the possibility to resend the profile or send another profile.
● It is also possible to select several items by holding the CTRL button or by doing a click-drag in the grid. This allows you to send a profile to several on-board computers at once.
Possible statuses:
|
|
Profile not successfully uploaded or incomplete, for instance, when using:
|
|
Profile not yet installed on the (operational) OBC |
|
|
No OBC installed in the vehicle or no communication with the OBC |
|
|
Profile is being sent |
|
|
Profile successfully uploaded and identical to the one in the database |
● Create a manager key or remotely update an instruction set:
|

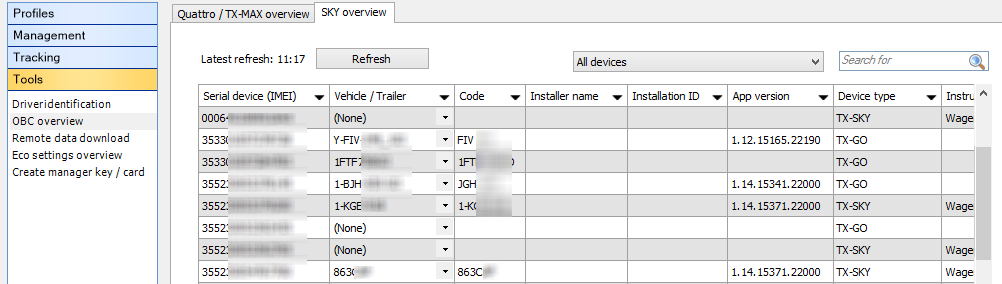

Serial device (IMEI) |
IMEI number of the device assigned to the company. |
|
Vehicle / Trailer |
The IMEI number can be assigned to a vehicle / trailer. IMPORTANTIn order to correctly visualize the vehicle and driver in TX-CONNECT, the IMEI number of the installed TX-SKY on-board computer must be linked to a vehicle in TX-CONNECT BEFORE a driver logs on to the on-board computer. For more information, consult How do I create a vehicle.
|
|
Code |
Vehicle code chosen by the customer. This code can be modified under Settings > Management > Vehicles. |
|
Installer name |
Name of the person who has performed the installation via Settings On-board computer (TX-SKY) or TX-CONFIG. |
|
Installation ID |
License plate entered on TX-SKY in Settings On-board computer. |
|
App version |
Current application version. |
|
Device type |
|
|
Instruction set |
Instruction set version. |
|
Date latest GPRS |
Date of the latest GPRS connection. |
|
Position |
Latest position. |
|
Activated |
|
|
VISUALISATION |
● When clicking on the arrow next to the vehicle / trailer, you can assign the serial device to another vehicle / trailer.

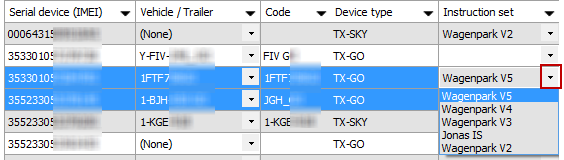

● Remotely update an instruction set:
● It is also possible to select several items by holding the CTRL button or by doing a click-drag in the grid. This allows you to send an instruction set to several on-board computers at once.
