TWO-WAY REEFER COMMUNICATION



Please note that this functionality is subject to user rights.



As from TX-CONNECT v11.33, you can send specific commands to reefer units.

This functionality requires specific hardware reefer units: Carrier Direct, ThermoKing iBox or ThermoKing TracKing.



When active, an additional option is available in the "Vehicle Follow-up" - "Real-time Information" or in the "Map" module > Set reefer settings.

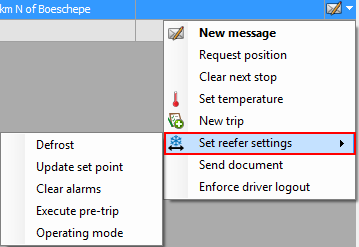

Set reefer settings



Available commands

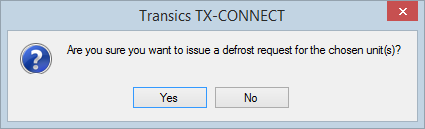

Defrost

Start a defrost cycle (Carrier: per reefer / iBox: per zone)

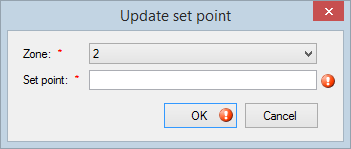

Update set point

Change the set point: configure zone and temperature value.

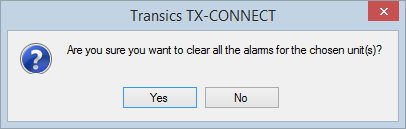

Clear alarms

Clear all active alarms / error codes in the reefer.

Execute pre-trip

Start a pre-trip test cycle.

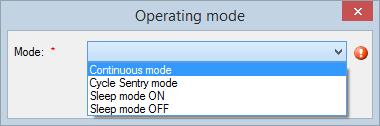

Operating mode

Modify the operating mode:

  • Continuous mode

  • Cycle sentry mode

  • Sleep mode ON

  • Sleep mode OFF

Set remote ON / OFF (ThermoKing only)
