ELB-Lock integration

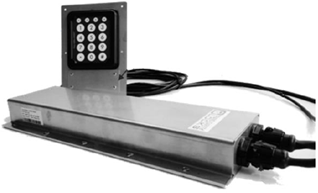

As from TX-CONNECT v11.33, TX-TRAILERGUARD units can be integrated with the ELB-Lock trailer door locking system.

Door lock state (real-time / history)

Vehicle Follow-up

Real-time information

 The real-time data from the door lock can be consulted in the column Door lock state

History

 The historic data from the door lock can be consulted in the "Sensor" tab page: Door lock data

Remotely set door lock

To configure the door lock remotely, an option was added in the Vehicle Follow-up - Real-time Information and the Map module.

When selecting a TX-TRAILERGUARD unit with an active ELB-Lock system, an extra option is available.

Please note that this functionality is subject to user rights.

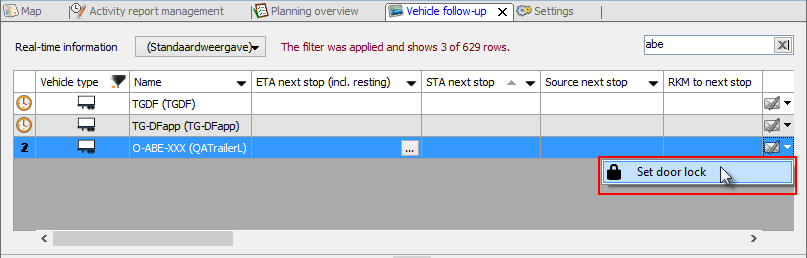

Vehicle Follow-up - Real-time Information

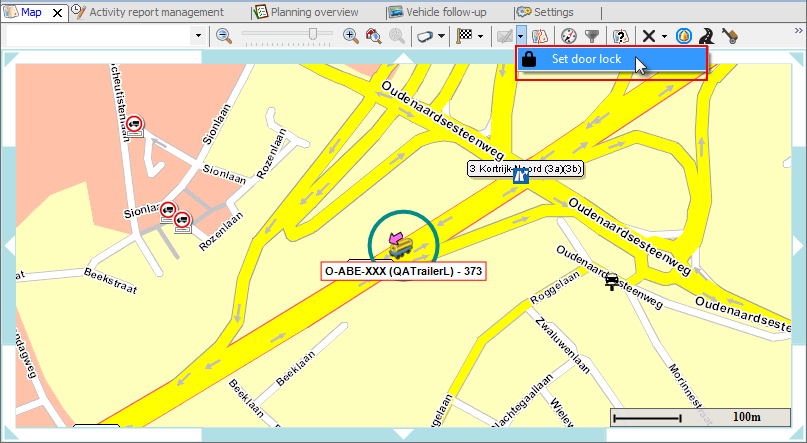

Map module



Set door lock

Select a TX-TRAILERGUARD unit and press in the Vehicle Follow-up / Map module.

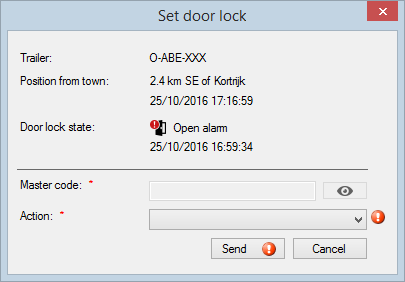

A configuration window is displayed with:

  • Trailer info

  • Current position from town

  • Current door lock state



Master code (only available if no master code is available in TX-SERVICE)

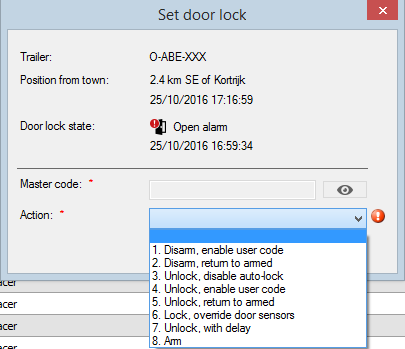

Select an action at the bottom and press Send:

Available actions:

  1. Disarm, enable user code
    This cancels the arming. Then you can enter a user code to unlock.

  2. Disarm, return to armed
    This cancels the arming. Then you can enter a user code to unlock     once. After closing the trailer doors, the system is automatically locked and armed again.

  3. Unlock, disable auto-lock
    This cancels the arming. Door unlocks immediately and automatic locking is disabled.

  4. Unlock, enable user code
    This cancels the arming. Doors are unlocked immediately without entering the user code. After automatic locking, reopening with the user code is possible.

  5. Unlock, return to armed
    This cancels the arming. Doors are unlocked immediately. After closing, automatic locking is activated and the system automatically switches to armed.

  6. Lock, override door sensors
    The system is locked and armed even without door contacts.

  7. Unlock with delay
    Doors are unlocked after a while. Once the doors have been closed again, the system locks and arms again automatically. This d    isables the input of the user code.

  8. Arm
    This disables the input of the user code. The system is armed without telematics verification and can only be unlocked with the master code (vario code) on the keypad (= required for high-security transport).
