Generate route points |
As from TX-CONNECT v11.33, an additional option is available in the route calculation window:
This option can be used when calculating a route and sending it to a vehicle.
When active, the route calculation will automatically generate a number of additional route points to make sure the calculated route in the TX-CONNECT Map module is the same route as calculated by the OBC's navigation software.
No specific user rights are required to have this option available.

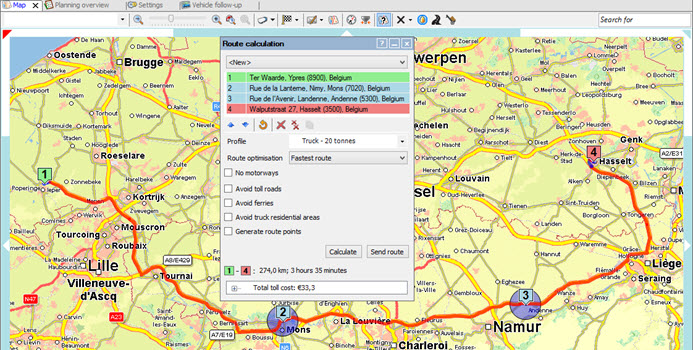

Route example: Route calculation results in 4 route points:
When active, the route calculation automatically generates additional route points to make sure the calculated route in TX-CONNECT is the same route as calculated by the OBC's navigation software.

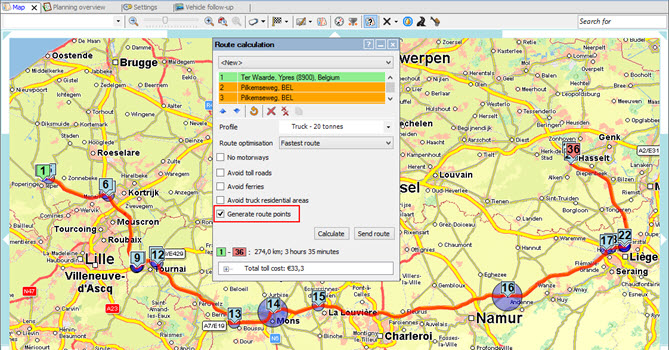

The above route calculation results in 36 route points instead of 4 with the active setting.
Automatically generated route points are visualized in orange:
