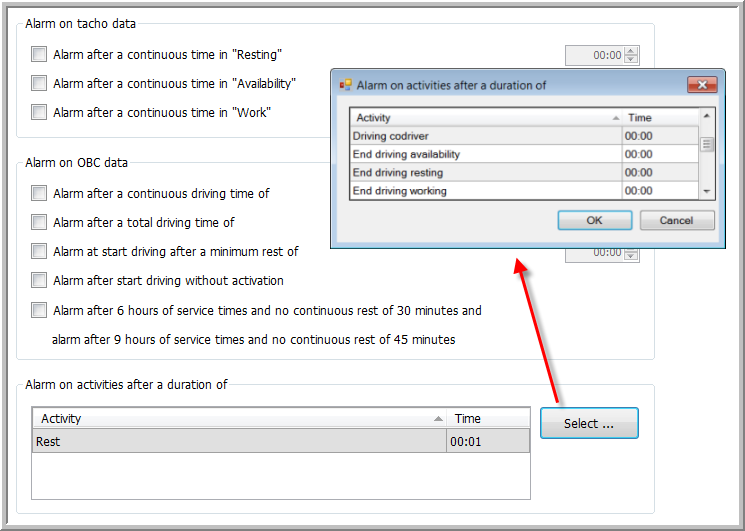

DURATION ALARM |
On this tab page, you can define the alarms on:
tacho data
OBC data
activities after a duration of
|
|
|
Minimum value |
Maximum value |
Default value |
|
Alarm on tacho data |
|
|
|
|
|
Alarm after a continuous time in Resting / Availability / Work |
Set hh:mm |
0:00:00 |
23:59:00 |
0:00:00 |
|
|
||||
|
Alarm on OBC data |
|
|
|
|
|
Alarm after a continuous driving time of |
Set hh:mm |
0:00:00 |
6:00:00 |
4:30:00 |
|
Alarm after a total driving time of |
Set hh:mm |
8:00:00 |
23:59:00 |
9:00:00 |
|
Alarm at start driving after a minimum rest of |
Set hh:mm |
1:00:00 |
23:59:00 |
1:00:00 |
|
Alarm after start driving without activation |
|
|
|
|
|
Alarm after 6 hours of service times and no continuous rest of 30 minutes and alarm after 9 hours of service times and no continuous rest of 45 minutes |
|
|
|
|
Note: As from TX-CONNECT version 11.21, when configuring the following driving and service times alarms in TX-CONNECT, the alarm will also be sent to the on-board computer.
In this manner, the driver will also receive the configured alarm.
Alarm after a continuous driving time of
Alarm after a total driving time of
Alarm at start driving after a minimum rest of
Alarm after start driving without activation
Alarm after 6 hours of service times and no continuous rest of 30 minutes and alarm after 9 hours of service times and no continuous rest of 45 minutes
|
Alarm on activities after a duration of |
Click the Select button to select the maximum duration of each activity. Set the time indication to 00:00 if you don't want to visualize the activity. Only the activities for which the duration was filled in, will be visible in the main window. |
