There are two possibilities to create a new GeoFencing object.

Starting from the GeoFencing module

Press the New button at the bottom of the screen.

Cf. The New GeoFencing window opens.

Starting from the map

On the map, you can create a new GeoFencing object starting from:

●    An address

There are two ways to find and display an address on the map:

§        By clicking the Search address button in the toolbar .

§        By clicking the Get address button in the toolbar and then on the map.

Once you have found the address, click the Create new GeoFencing button:

●     By clicking Create GeoFencing in the drop-down list next to the flag and then on the map.


When using this option, you will have to enter the name of the GeoZone yourself before continuing. However, with the other options, TX-CONNECT automatically uses the address as the name of the GeoZone.

●    A POI

Search for the POI on the map you want to create a GeoFencing object for and click the Create new GeoFencing button:

●    A vehicle

Note that it is impossible to create a GeoFencing object for a rented vehicle.

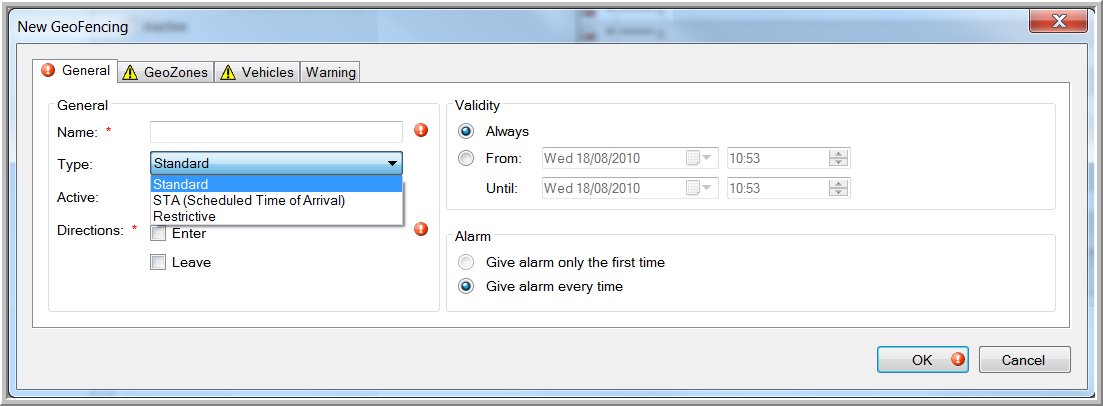

The "New GeoFencing" window opens.

Next, select what type of GeoFencing object you wish to create:

1. Create a new Standard GeoFencing object

Standard GeoFencing means that the driver and / or the home base get a warning when the vehicle enters / leaves a certain area.

2. Create a new Scheduled Time of Arrival GeoFencing object

Scheduled Time of Arrival means that the driver and / or the home base get a warning when the vehicle has not arrived in this area by a certain time.

3. Create a new Restrictive GeoFencing object

Restrictive GeoFencing means that the type of activity selected is not allowed to take more than x minutes in the selected area.

4. Create a new Enforce Driver Logout GeoFencing object

Enforce driver logout: This setting allows drivers to be logged out automatically in case the vehicle remains inactive (engine not running) for a specific amount of time at a specific location (e.g. at the homebase).

Related topics: How do I create a GeoFencing
