TEMPERATURE |

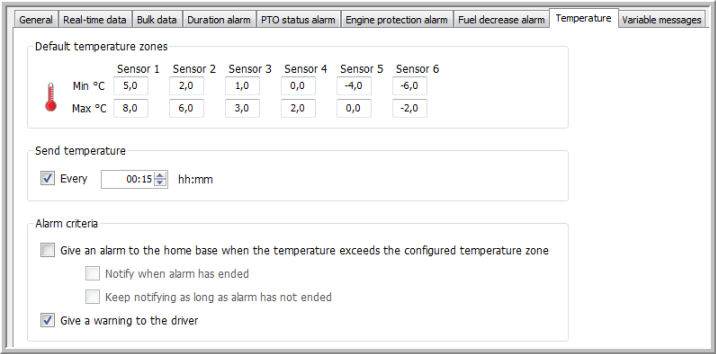

In the OBC profiles, the allowed minimum and maximum temperatures can be configured per sensor. The Temperature tab page contains 3 zones:
|
Parameters |
|
|
§ Default temperature zones |
Specify a minimum and maximum temperature (°C) per sensor. |
|
§ Send temperature |
Check the checkbox if you want the temperature to be sent to the home base and set the interval. |
|
§ Alarm criteria |
Define whether you want the alarm to be sent to the home base and / or driver; in case the temperature zones are exceeded. |
The actually measured temperatures in the vehicle are shown in the "Sensors" tab page of the "Vehicle follow-up" module.
For vehicles that have default temperatures set, it is possible to temporarily modify these temperature zones.
Click here for more information on temperature zones with a limited validity.
