SEND DOCUMENT

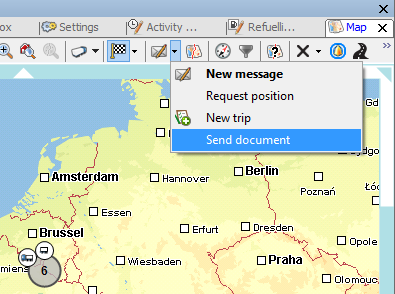

Using the Send document option in the Vehicle Follow-up / Map module, dispatchers can send documents to the on-board computers.

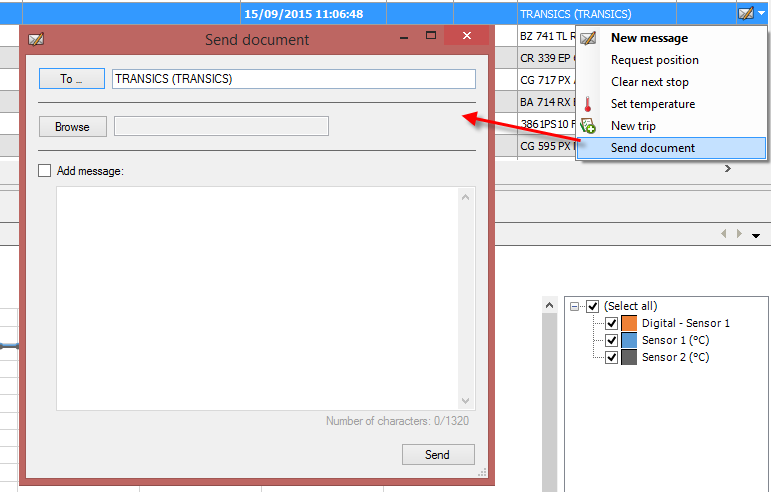

A "Send document" window will open with the selected vehicle already filled in as the recipient.



Press Browse to insert the desired document.

Select Add message to include a text message for the receiver.

Vehicle Follow-up

Map module



Document properties

Supported file types

.bmp, .jpg, .gif, .png, .pdf, .vli, .poi

Maximum file size

  • TX-MAX: 200 Kb

  • TX-SKY: customer setting

File name

  • Maximum length: 40 characters

  • File name cannot contain any of the following characters: \ / : * ? " < > |

  • File name is visible to the driver
