Here it is possible to create and modify OBC profiles for your vehicles. An OBC profile defines how and when the OBC sends data and alarms to the home base. There is a default OBC profile containing the necessary default values.

Note:

• Newly created vehicles get the default profile, until another profile is assigned.

• When an existing profile is modified, the modifications are automatically sent to the vehicles that have this profile assigned. However, before the sending, a message box appears, allowing the user to cancel his action.

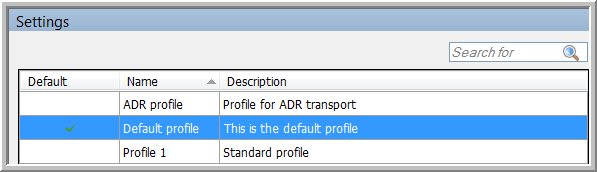

• The upper zone consists of a read-only grid containing the profiles. Note that the default profile is marked with a check mark.


• The lower zone contains 8 tab pages with detailed data.


• • General

  • Real-time data

  • Bulk data

  • Duration alarm

  • PTO status alarm

  • Engine protection alarm

  • Fuel decrease alarm

  • Variable messages

  • Assign vehicles (only when creating a new OBC profile)

At the bottom of the page there are three buttons:
