TRIP ASSESSMENT |
The window consists of two zones:
- In the upper part, you have an overview of the training trips during a certain period
- In the lower part, the details of one or two selected trips are displayed.
Remarks:
You will only see this information for the drivers you follow up, which can be set in Settings - Tracking - Who tracks what - tab page Drivers.
When you have a database with version lower than 20.02 , you will get the message "Feature not supported". For more information or to purchase this feature, please contact your Transics project leader, or Transics support.
|
TRIP OVERVIEW |
The first time you consult this overview, the data shown will be by default from the last 7 days. When clicking the Period button, you can modify this period to either from day x until day y, or to the last x days. This period is limited to 99 days.
The overview includes the following columns:
Name of the trip
Driver
Vehicle
Begin time of the trip
End time of the trip
Average fuel consumption (l/100km)
Name of the trainer
Distance (kilometres)
Average speed (km/h)
To save this overview as an Excel file or PDF document:
|
|
Click right in the table and select “Export data”. |
|
|
|
|
|
Select the columns you want to export. |
|
|
|
|
|
While the system is retrieving the data, you will see a waiting message. |
|
|
|
|
|
A report viewer will open. Click on the Excel or PDF icon to save your result as an Excel file or a PDF document. |
|
DETAILED TRIP INFO |
To get detailed information about a trip, click on the
button in the upper part of the screen.

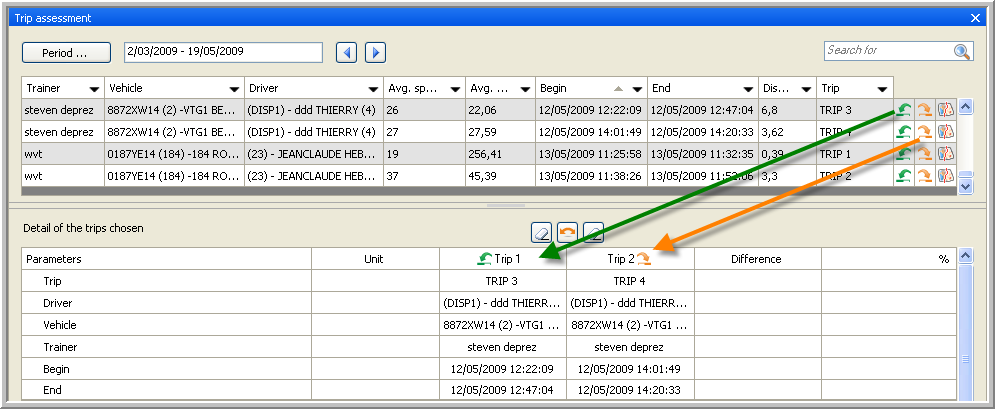

If you want to compare two trips, e.g. the trip before and the trip after a training or a trip from two different drivers, also click on the
button.
The difference between both trips will be displayed in (absolute) numbers (see column “Difference”) and in percentage (see column “%”). In case of improvement, the column "%" will be indicated in green (this is only the case for the most relevant parameters). In case of deterioration, this column will be indicated in red.
The detailed trip overview is divided into several categories and you have different parameters per category.
Remark: When you click right in this detailed overview, you can collapse or expand all folders.
Results
Distance (kilometres)
Duration of the trip (hh:mm:ss)
Duration of driving (hh:mm:ss)
Total fuel consumption (litres)
Average fuel consumption (l/100km)
Total RPM
Average RPM
Average CO2 emission (g/km)
Average speed (km/h)
Analysis (To discover the parameters, click on a subcategory. A pop-up with the parameters will appear. To close the pop-up, click in it, but not on the screenshot.)
You can clear the information about a trip, clicking on the Reset trip 1 or Reset trip 2 button.
If you click on the Switch trips button, the information on the second trip will move to the first column, and vice versa.
It is also possible to save this overview as an Excel file or PDF document. To do so, click right in the overview and select "Export data". The report will be generated automatically. To save it, click on the Excel or PDF icon.
